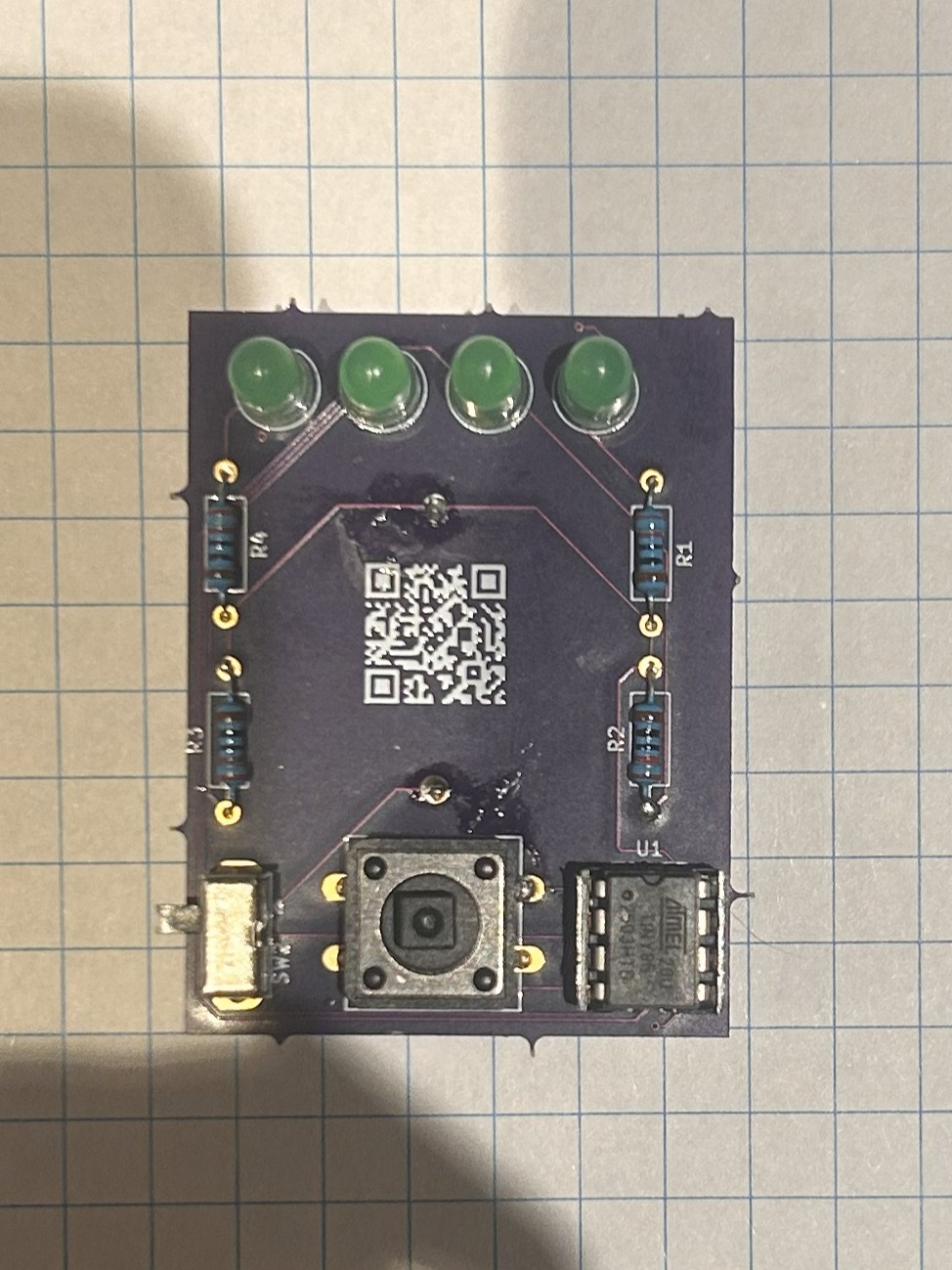

Front of the Board

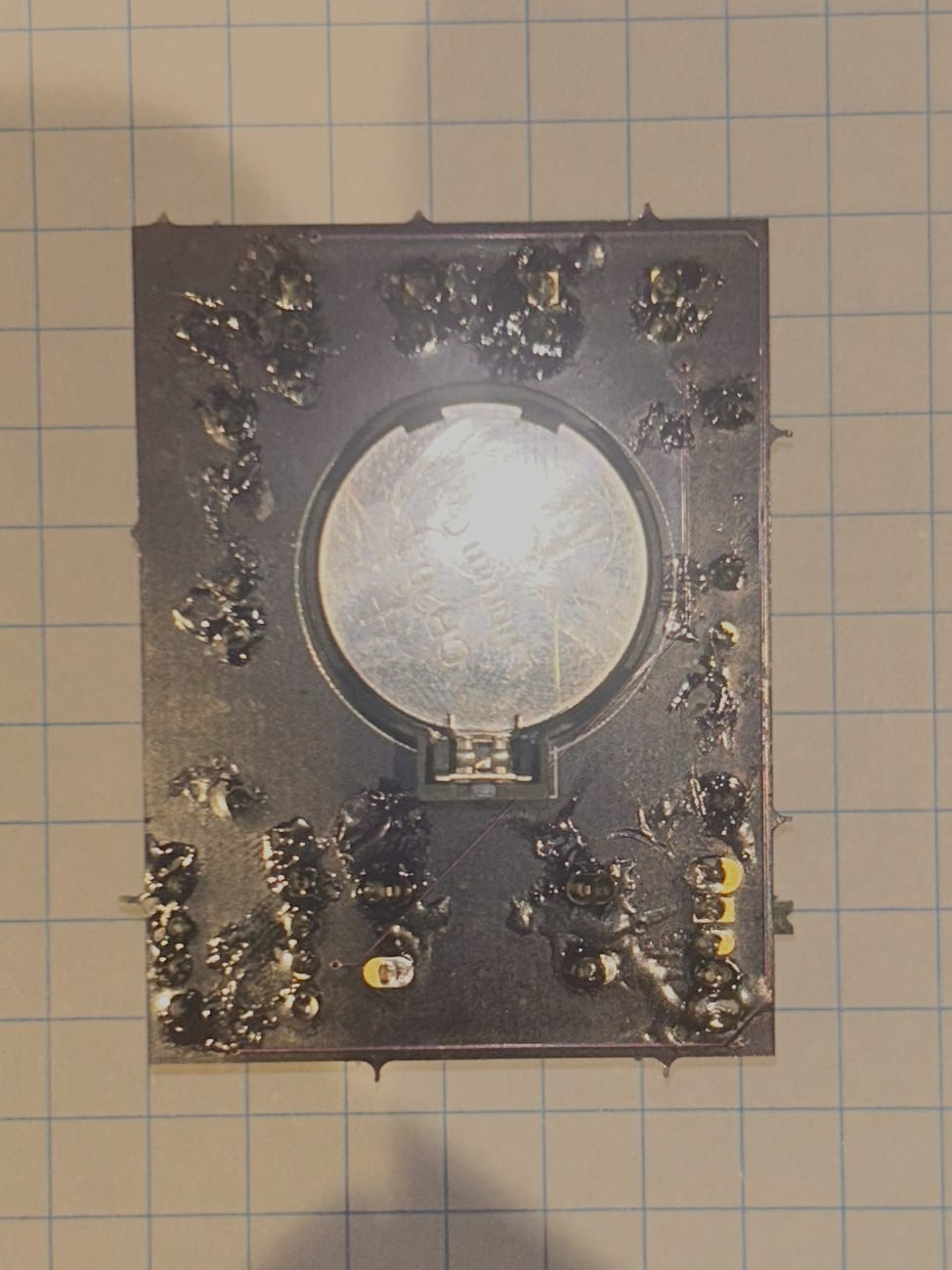

Back of the Board

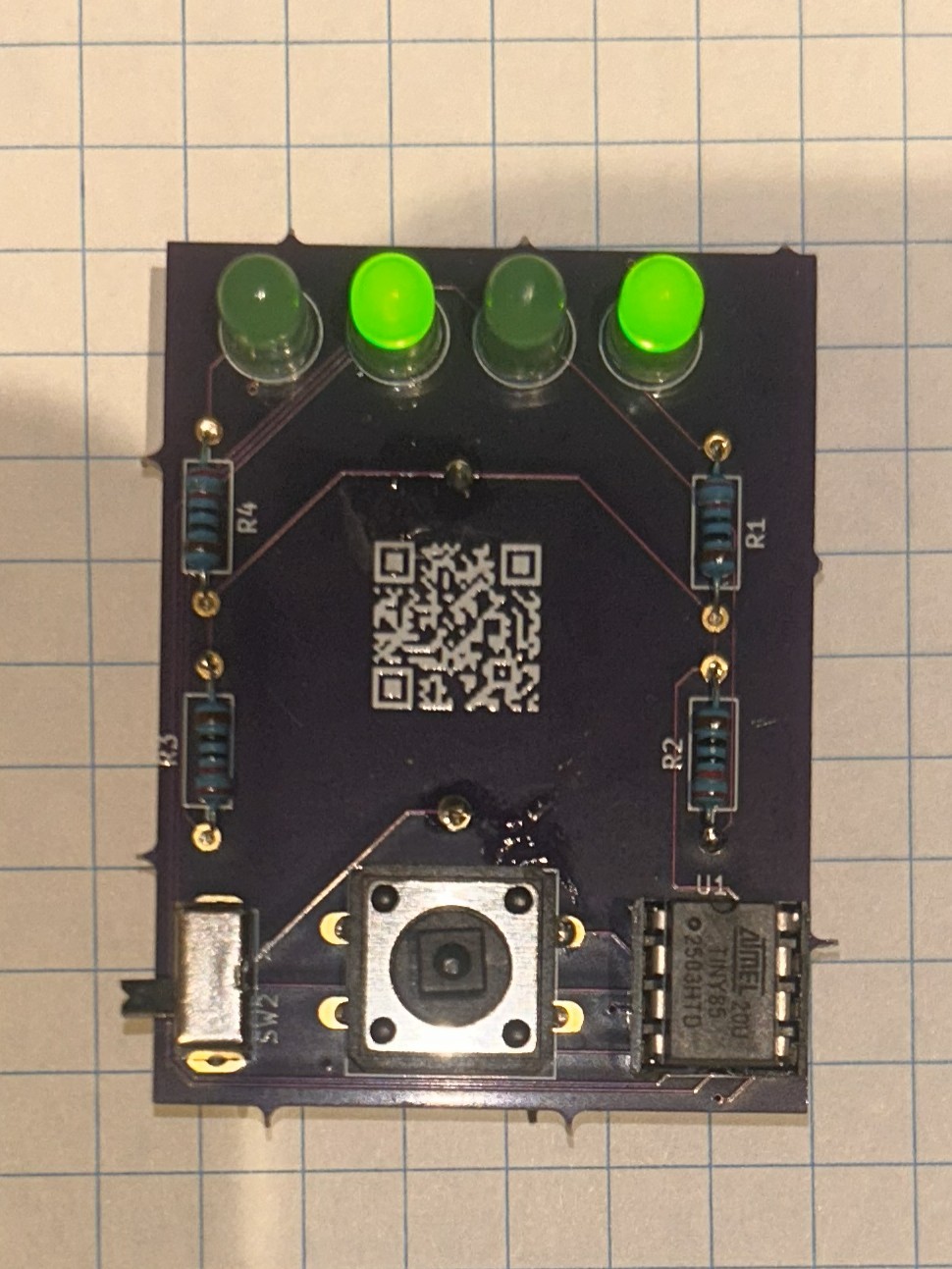

Board being Used
Binary Dice is a simple pcb based on the ATtiny85. It generates a random number and then displays it on leds in binary. It is my first attempt and making a pcb, and was a very fun and educational experience.

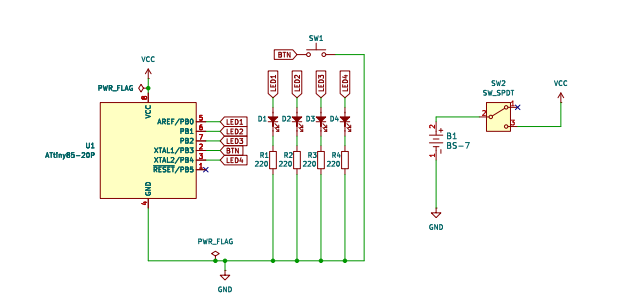

Binary Dice uses a custom PCB designed in KiCad powered by an ATtiny85. Because it was my first PCB, my goal was to keep it cheap and simple, so I tried to design it arround parts I had lying arround from various kits.
I have made a digikey list containing all of these parts: Digi-Key BOM
The boards were ordered from OSHPark for a total of $15.20 for 3 boards (approx $5.06/board), making the total cost $9.90 per board.
To program and flash the microcontroller I used the Arduino IDE, and followed this guide.

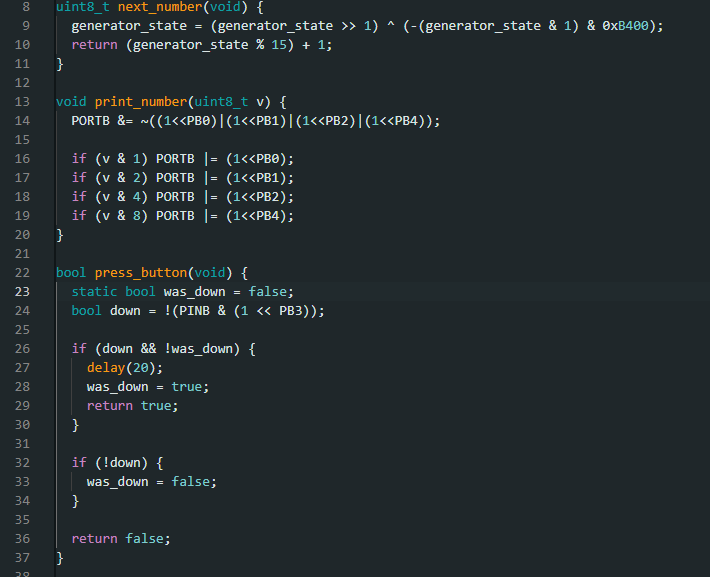

The code uses a 16 bit linear feedback shift registor to generate pseudo random numbers after each button click. It generates numbers between 0 and 15 then displays them on the leds using binary.

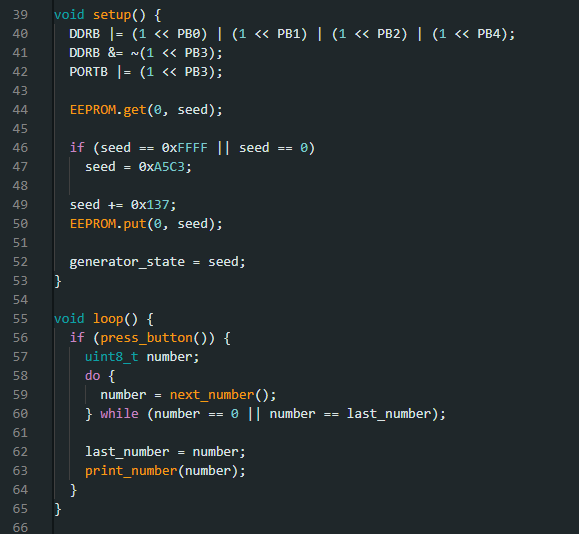

Because the LFSR is deterministic, I made the program read the previous eeprom seed and increment it after each boot to make sure the same sequence doesnt get repeated. Finally, I tried to implement software debouncing for the button, however it leaves a lot to be desired so I plan to come back to that in the future.
